PharmaCount SC Range
High-Speed Counting Systems for Large-Scale Production
The PharmaCount SC Range is Pharma Packaging Systems’ flagship series of high-speed electronic counters, engineered for demanding production environments requiring speed, accuracy, and flexibility.
Overview and benefits
PharmaCount SC Range Overview
The Pharmacount SC Range is Designed to handle all tablet and capsule formats including transparent soft gels, these systems are available in 12, 18, 24, 36 or 48 lane configurations and are built around our proven linear vibratory feed technology and advanced electronic controls.

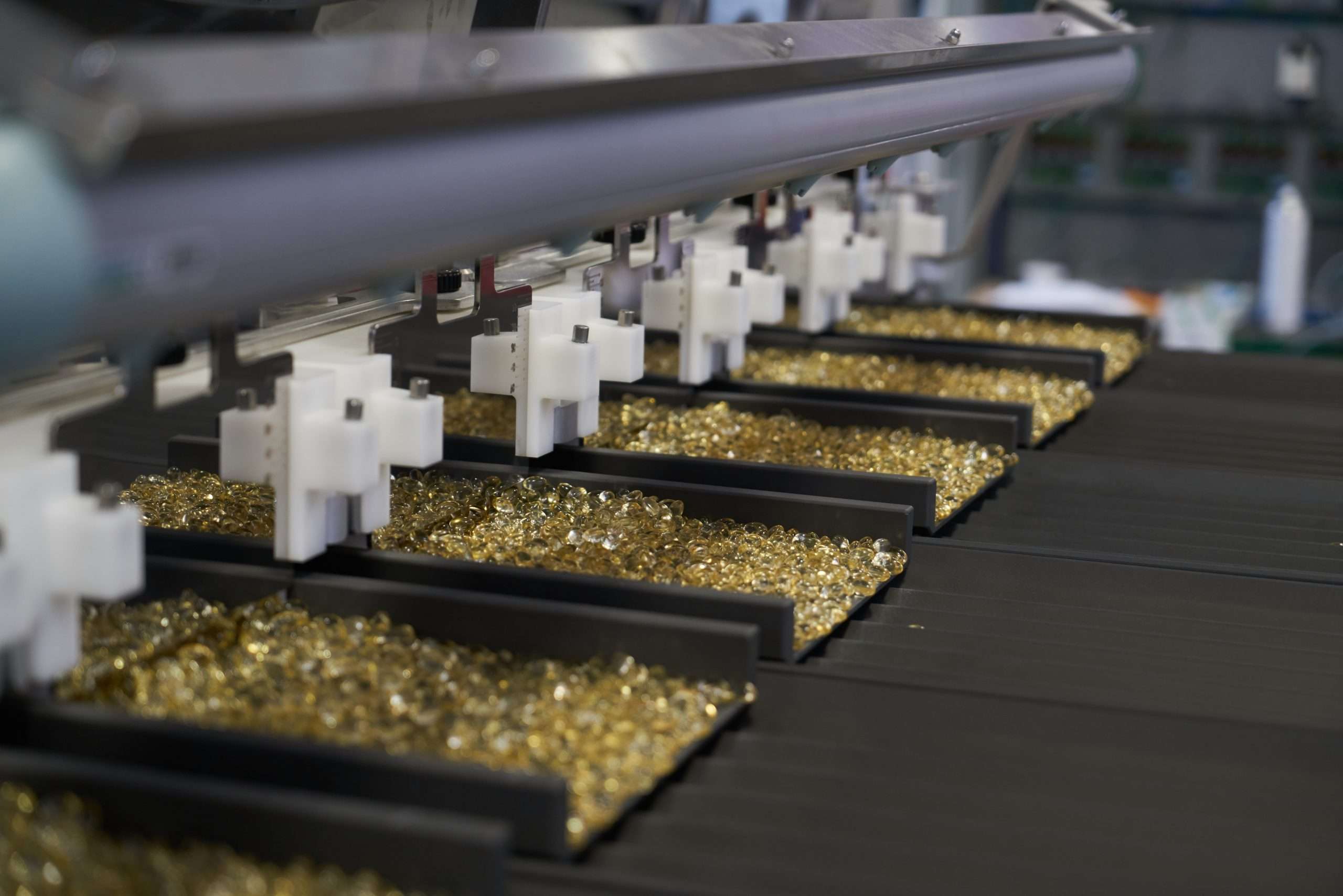

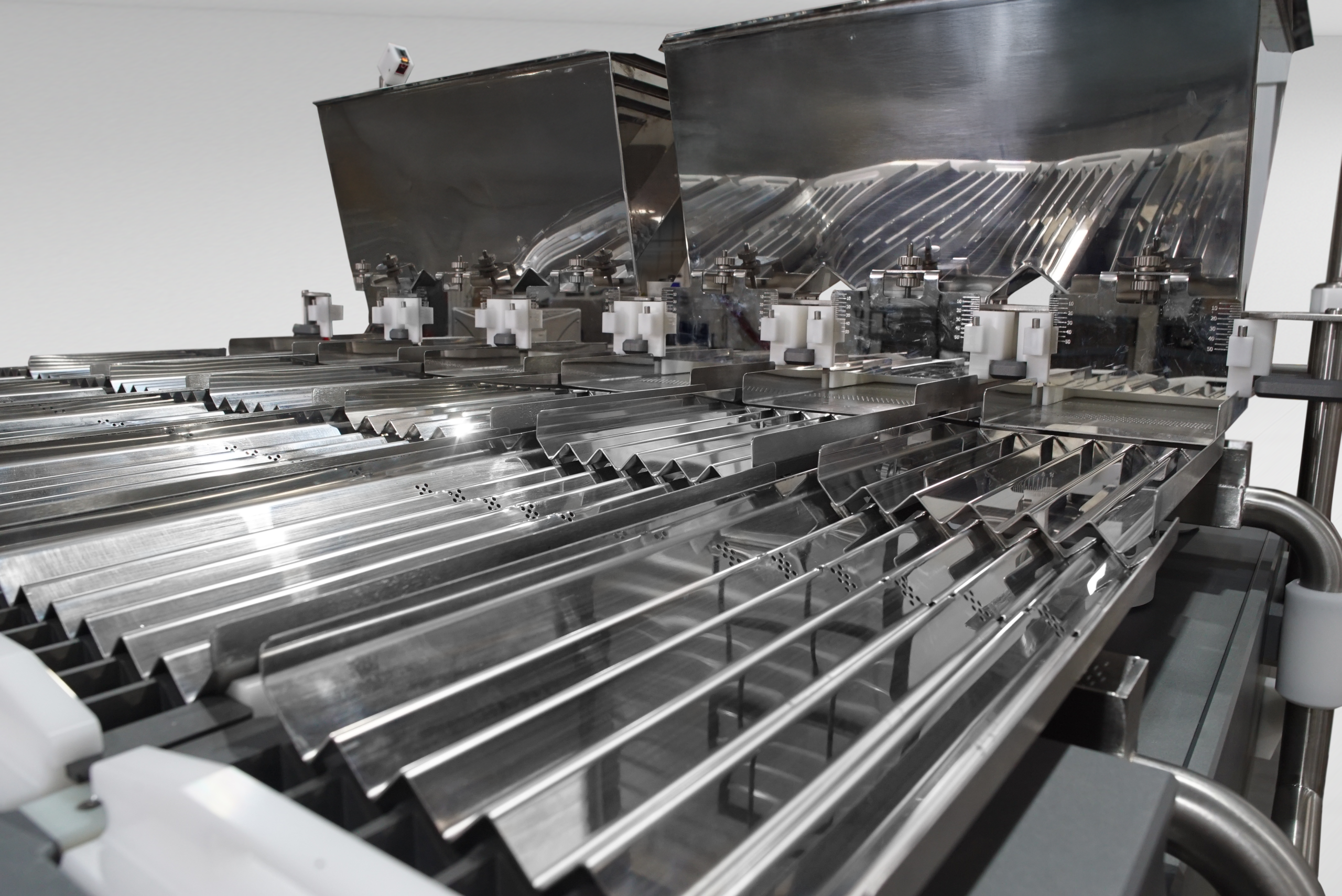

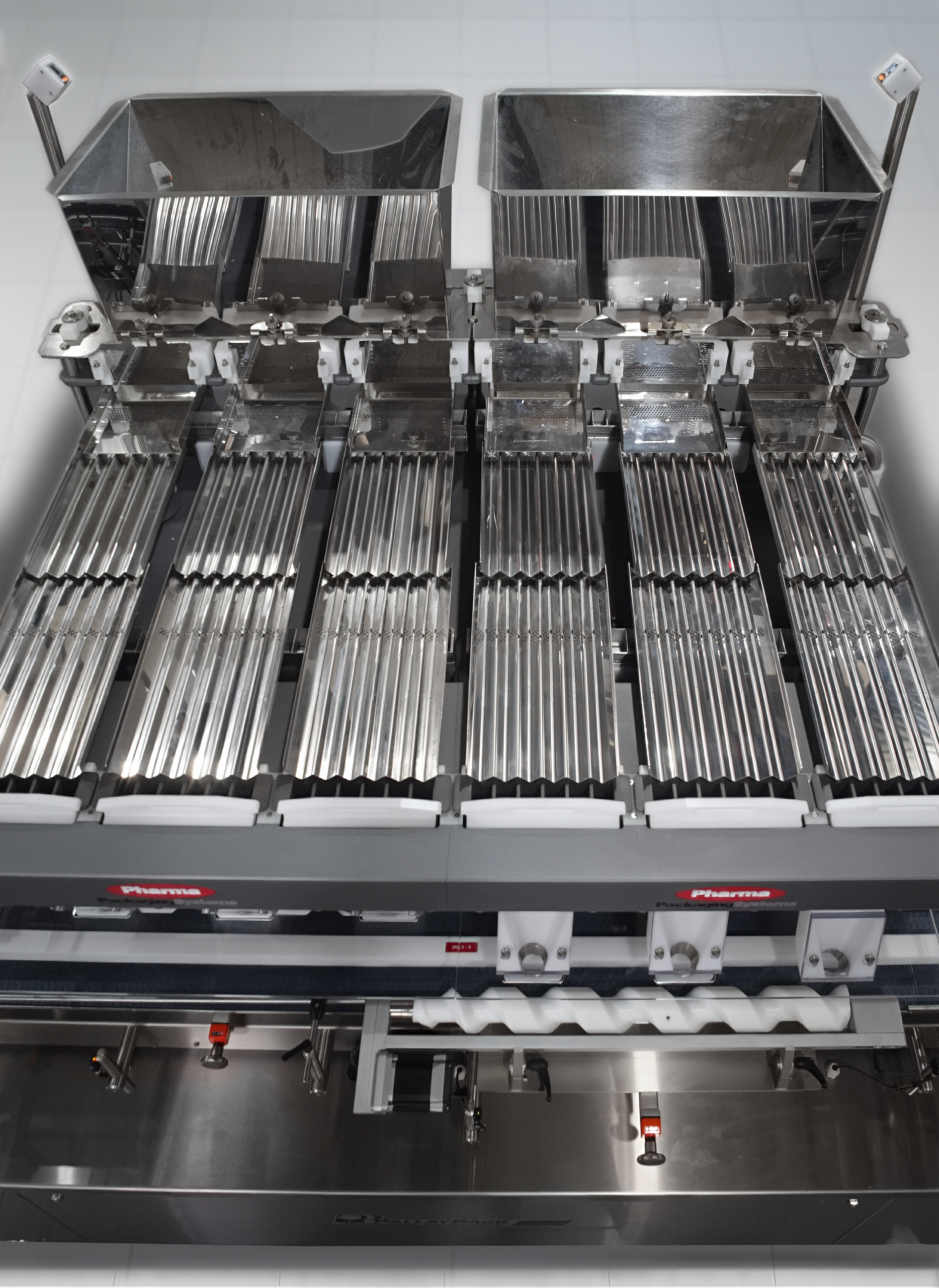

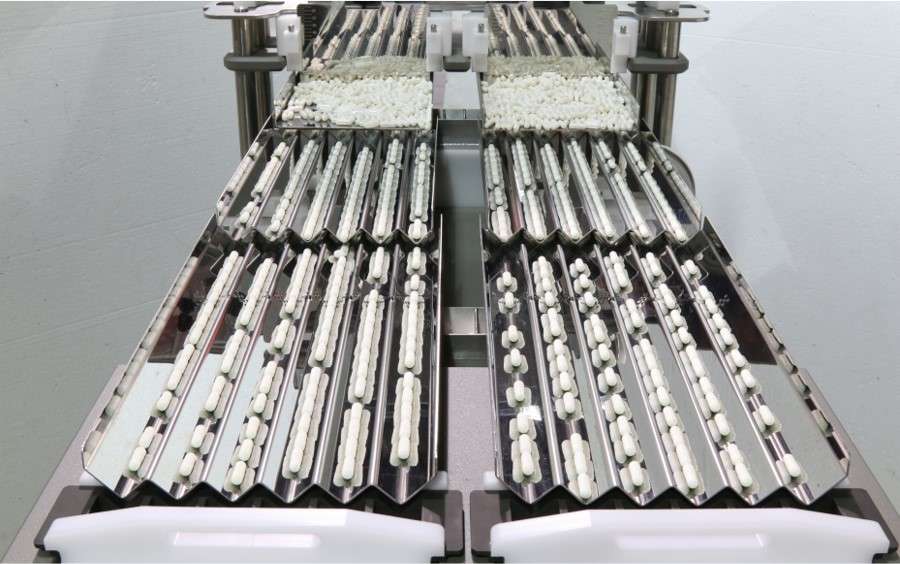

Each model in the SC range uses a modular 6-track vibratory tray format. Product flow is precisely regulated via hopper flow control gates, while each track offers independent control of amplitude and frequency for tailored product handling. This ensures consistent feed and optimal counting conditions across a wide range of product types.
High-Speed Modular Configurations
12, 18, 24, 36 or 48 lane configurations.
Independent Feed Control
Independent control of amplitude and frequency.
FlexiFill Batch Optimisation
FlexiFill trap-box batching for increased line speed.
Advanced Sensor Accuracy
High-speed IR sensors with automatic environmental compensation.
Control and Configuration

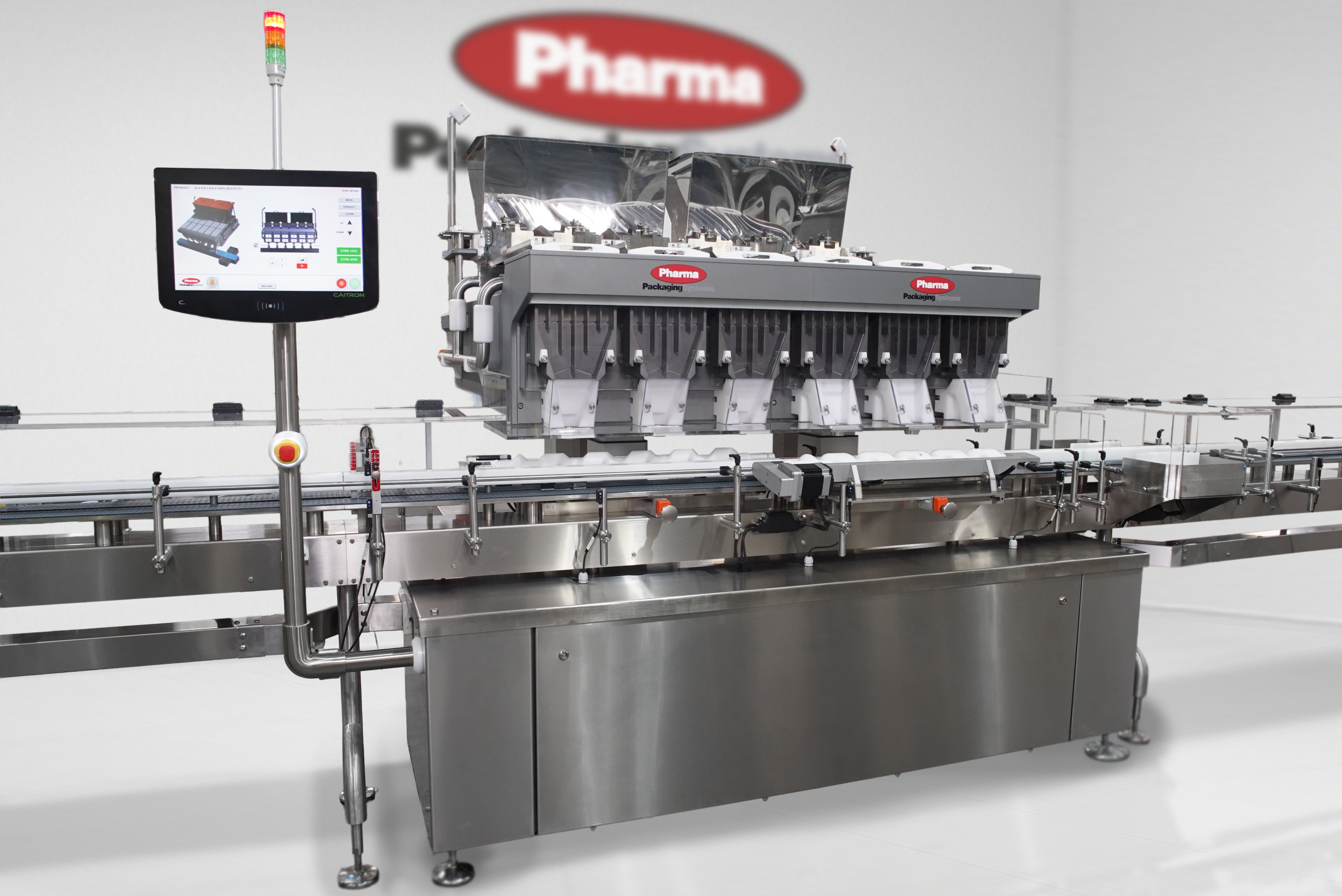

The intuitive PC-based touchscreen HMI provides full control of all system parameters and includes recipe storage, data export via USB, and optional 21 CFR Part 11 compliance with audit trails and secure login access. All product contact parts can be removed without tools, simplifying cleaning and changeover.
Intelligent Counting Control
Counting is performed by ultra high-speed infrared sensors, scanning 34,000 times per second. These next-generation sensors include onboard microprocessors that automatically trend and recalibrate to compensate for environmental factors like dust and humidity, eliminating the need for manual calibration or frequent maintenance.
Optimised Line Performance

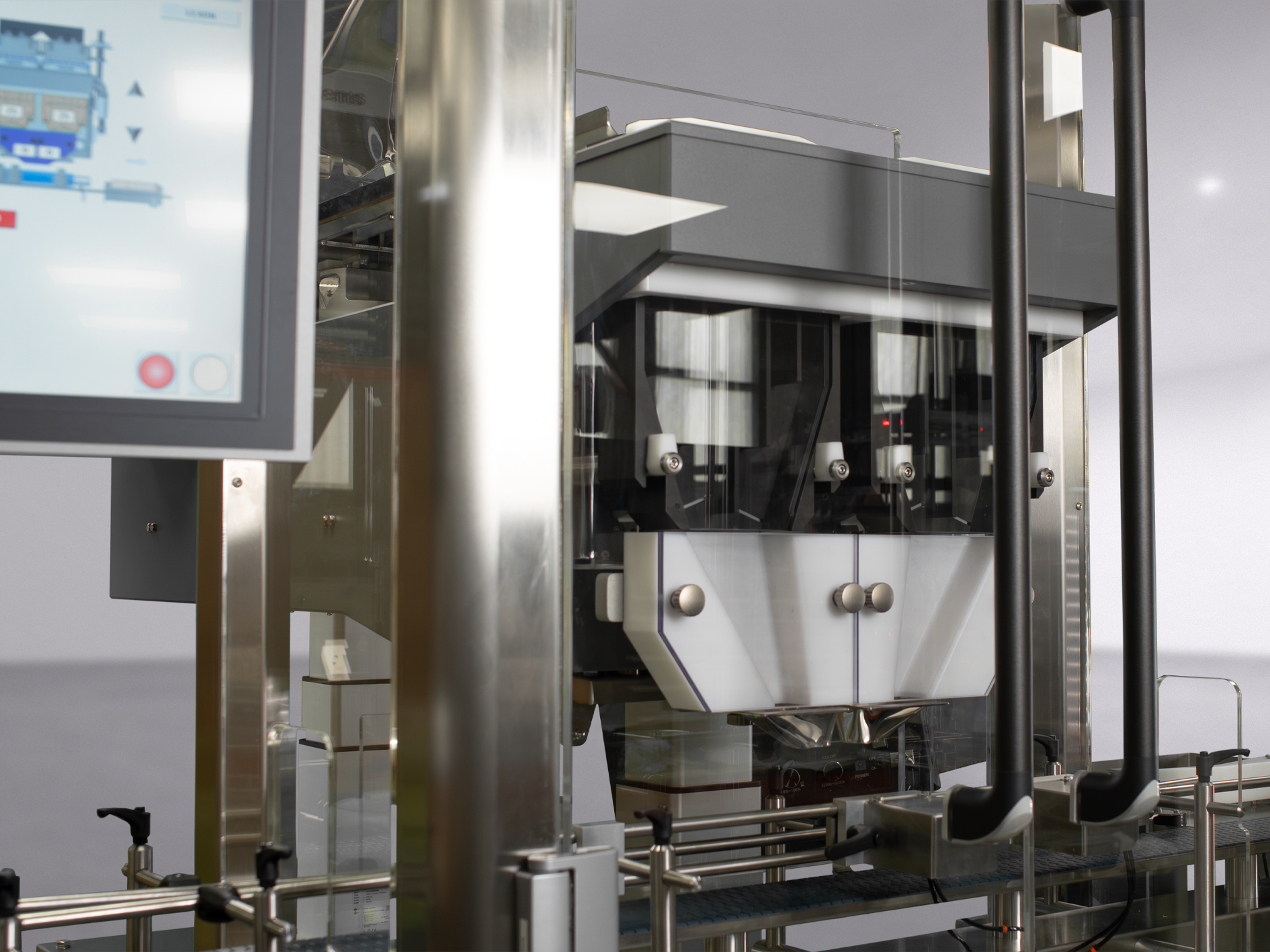

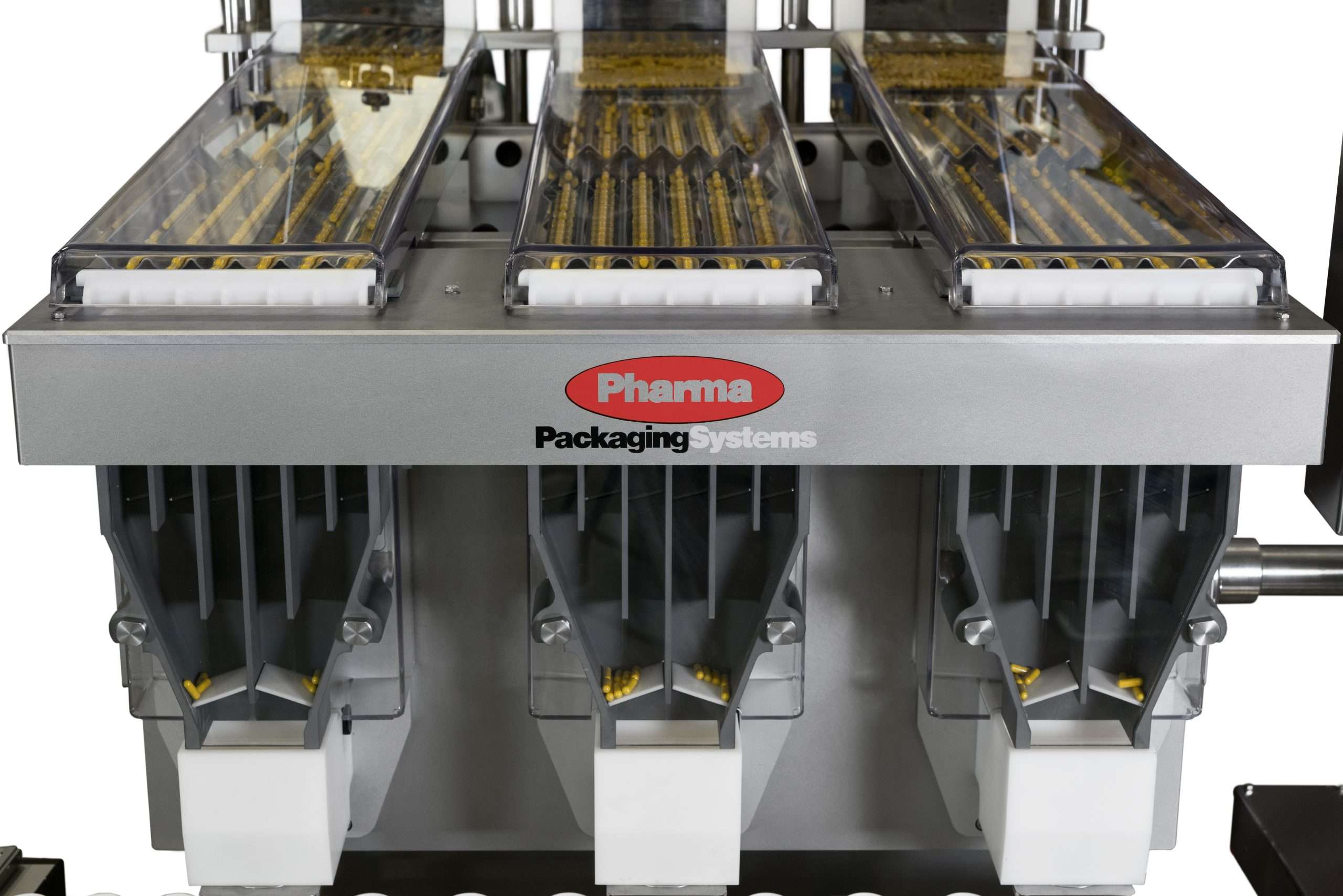

All SC models incorporate PPS’s FlexiFill technology as standard. This intelligent system enables the use of trap boxes for pre-batching smaller counts, allowing product to be counted while bottles are being indexed. This significantly boosts line speed without sacrificing accuracy. The open front chute design provides full visibility of the count and discharge process, helping operators fine-tune settings for maximum efficiency.
High-Speed Counting Systems for Large-Scale Production
Our Full PharmaCount SC Range
If you’re interested in learning more about a specific model, please get in touch with our team by filling in a contact form or giving us a call.

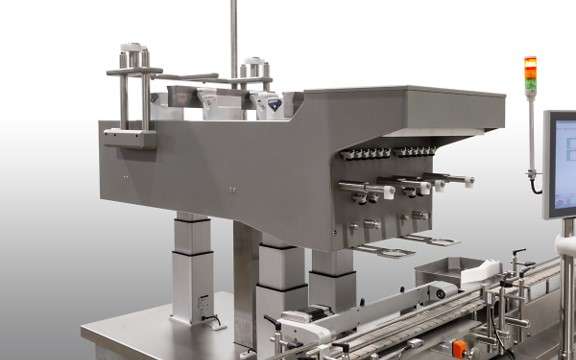

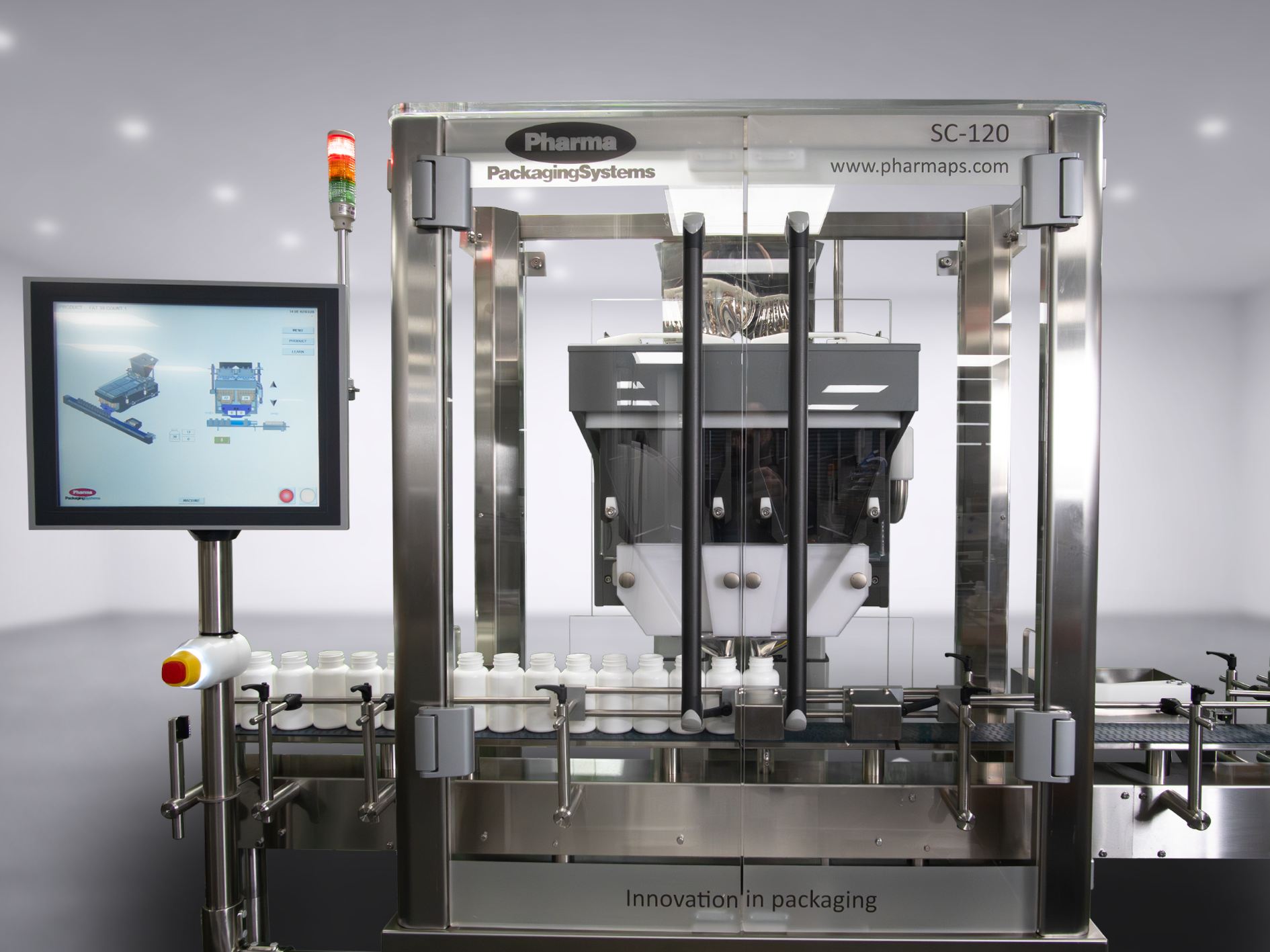

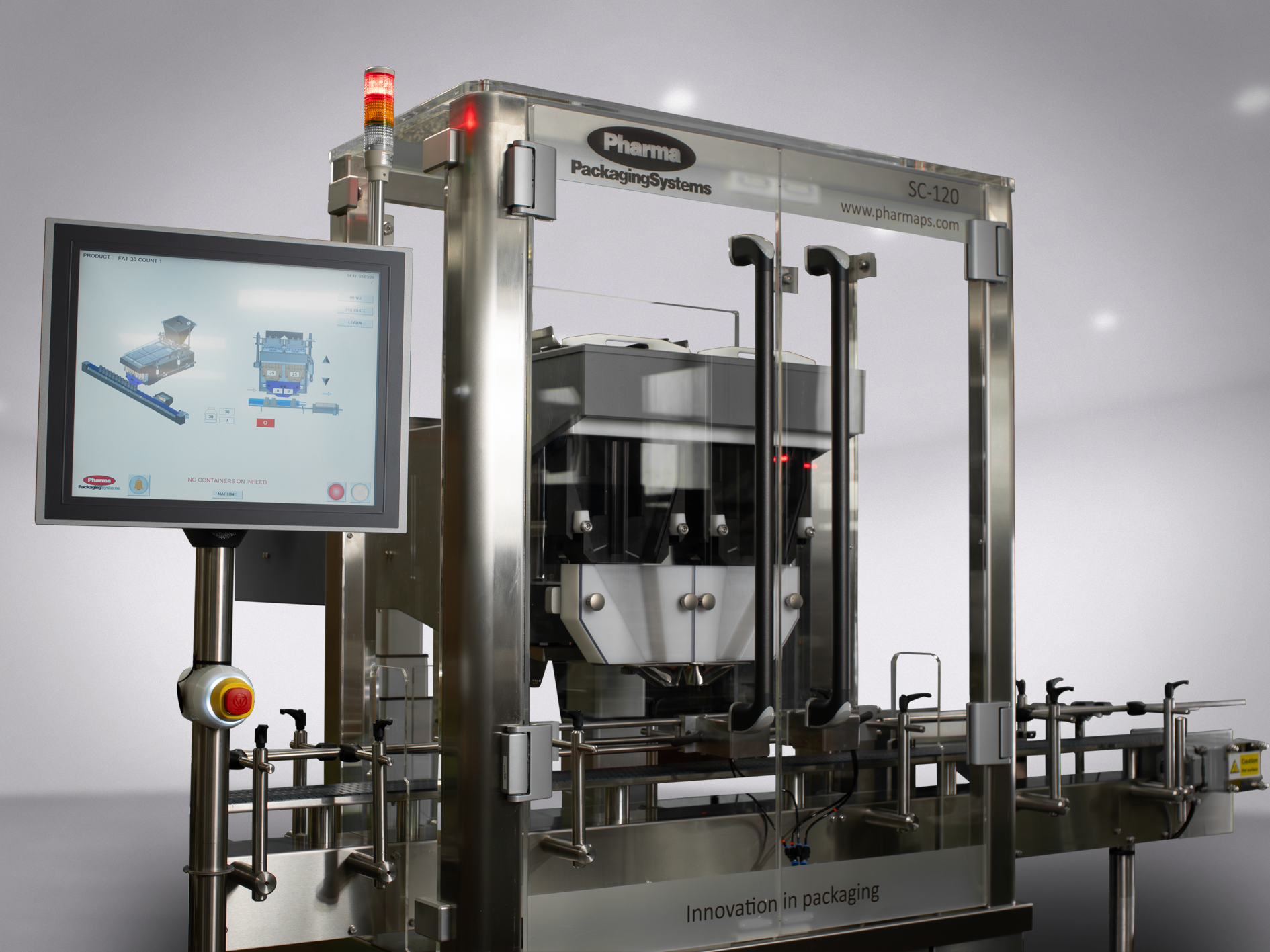

PharmaCount SC 120

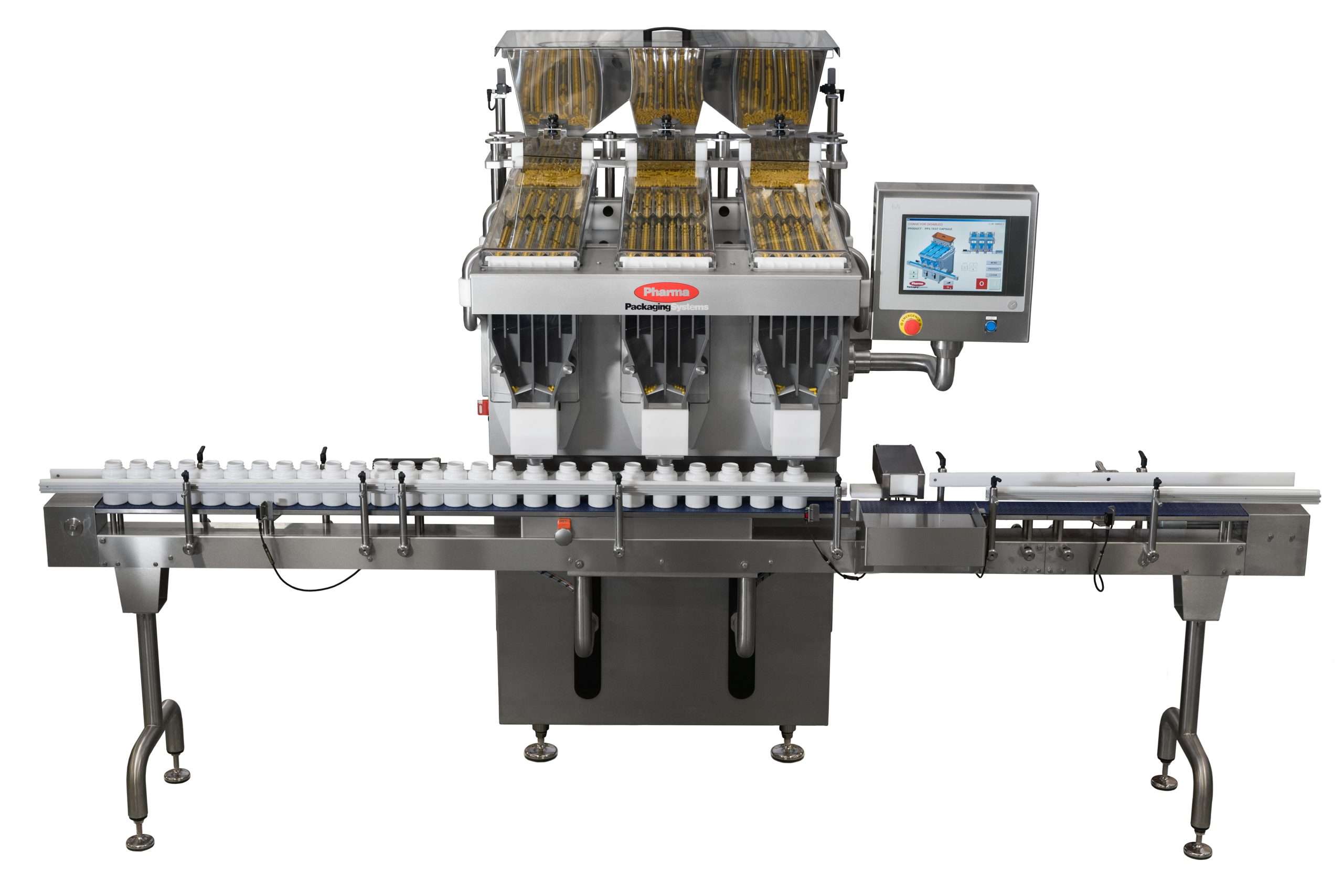

PharmaCount SC 180

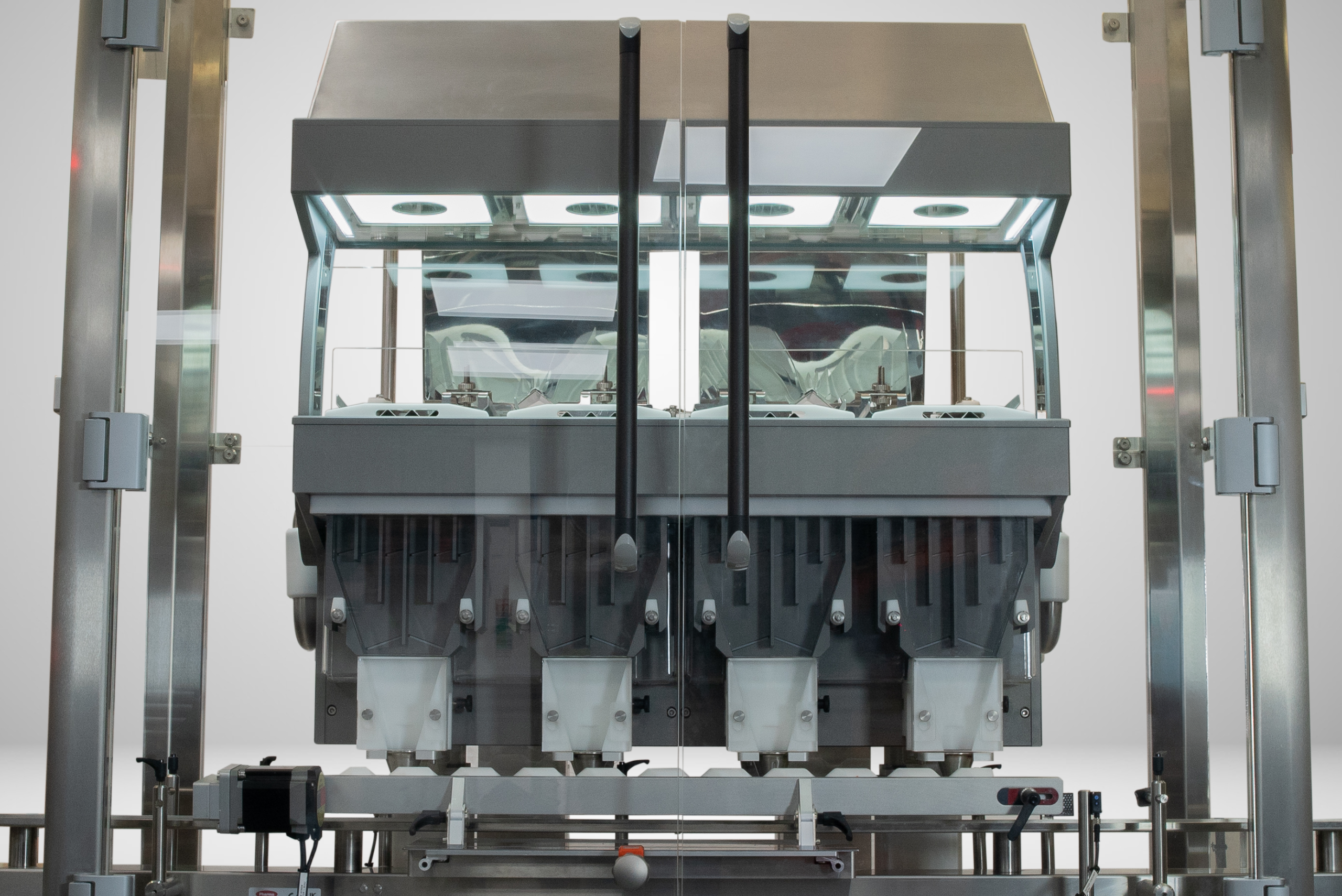

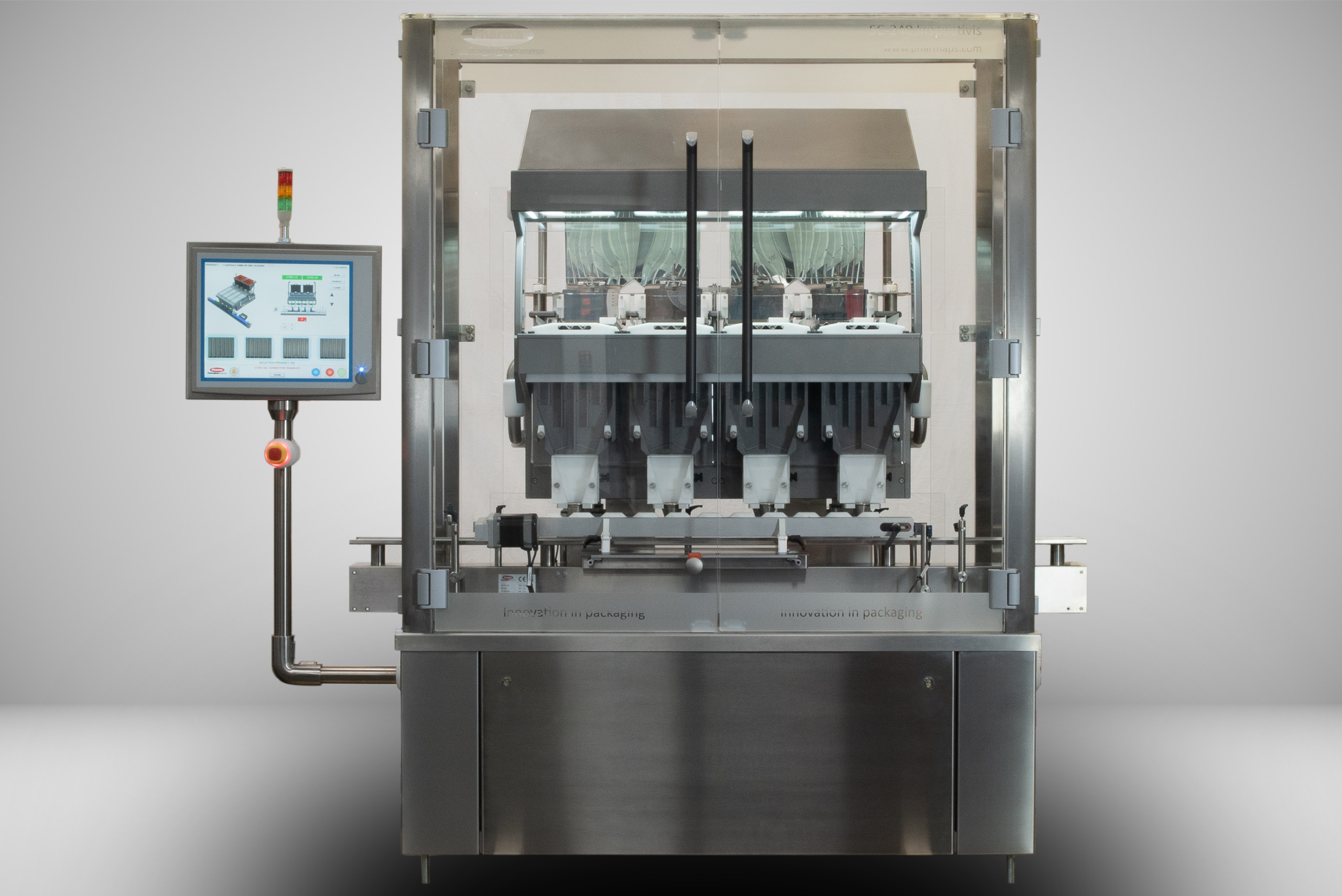

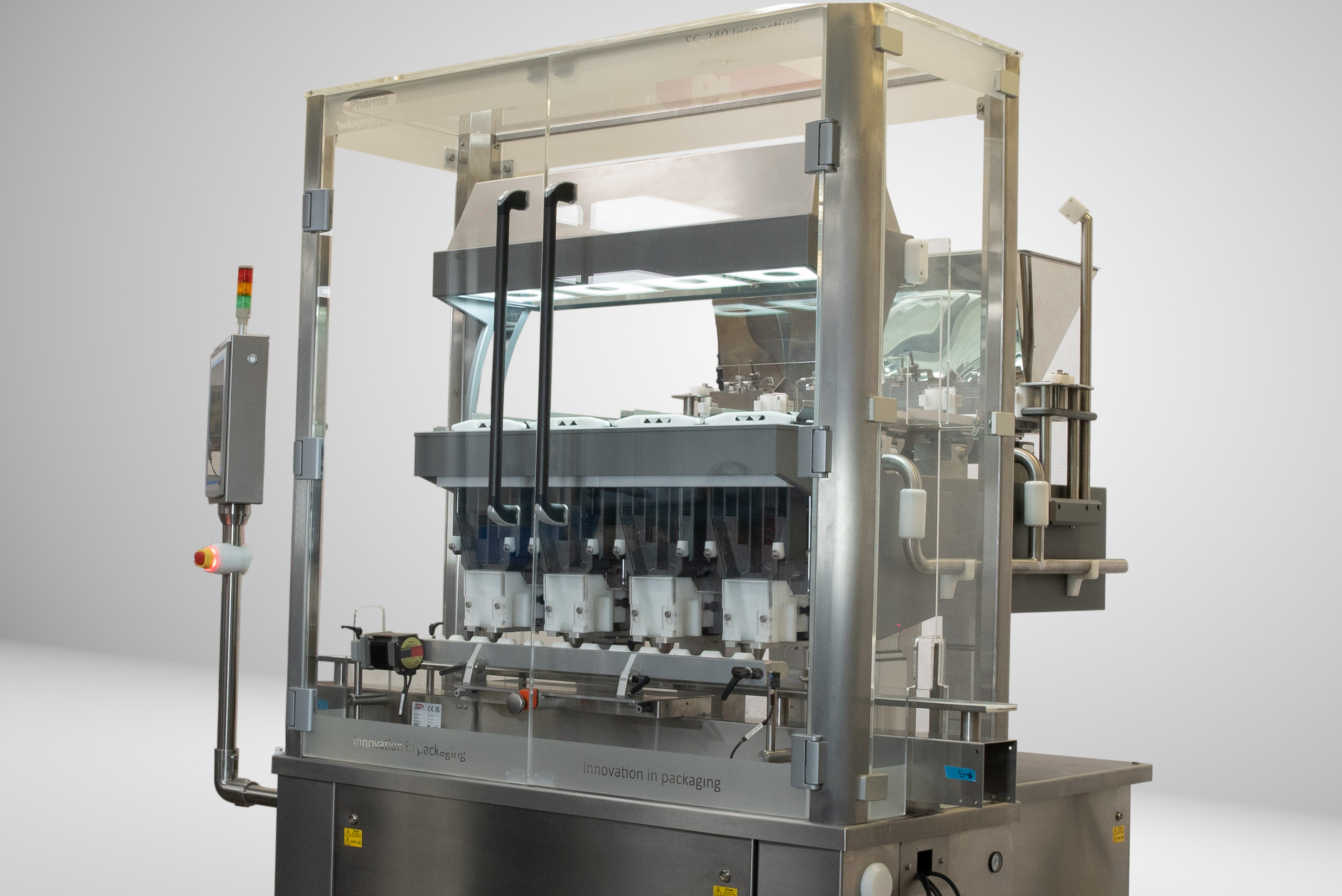

PharmaCount SC 240

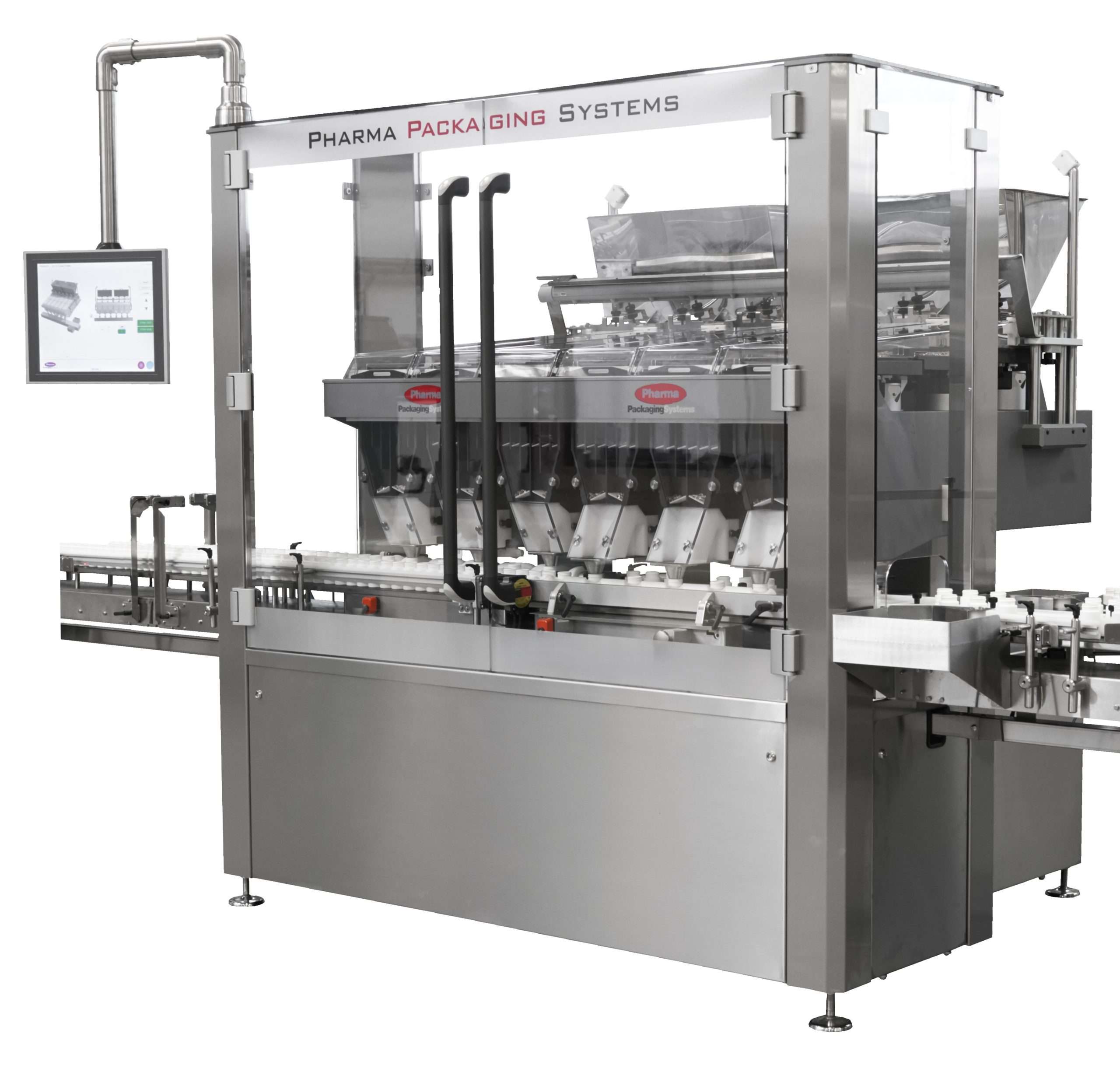

PharmaCount SC 360
Engineered for High-Speed Production Environments
Applications and Features
Each model in the SC range uses a modular 6-track vibratory tray format. Product flow is precisely regulated via hopper flow control gates, while each track offers independent control of amplitude and frequency for tailored product handling. This ensures consistent feed and optimal counting conditions across a wide range of product types.
12, 18, 24, 36 or 48 lane configurations
Designed to handle all tablet and capsule formats
Throughput up to 300 bottles per minute
Dependant on configuration
Twin or triple bottle fill formats
For maximum output
High-speed IR sensors
With automatic environmental compensation
Independent control of each feed tray
For amplitude and frequency
Open chute design
For full visibility during setup and operation
Tool-free removal of contact parts
For fast changeover and cleaning
PC-based touchscreen HMI
With product library and data export
FlexiFill trap-box batching
For increased line speed
Integrated chip and dust extraction
Full validation documentation available
Installation and Operational Qualifications
Optional 21 CFR Part 11 compliance
For regulatory environments
